Bambu Lab

Bambu Dual-Texture PEI Plate - A1 mini

Item #: BAM-FAP012
There are no reviews yet Write a review
Price: $58.31 inc GST
    The product is in stock Availability: In Stock (Back Order Not Possible)
    Usually ships In 2-4 days

    Quantity:

    About This Item

    • Features dual surfaces: one textured and one smooth, enhancing versatility in 3D printing.
    • Constructed with a 0.5mm magnetic stainless steel plate for excellent adhesion and minimal warping.
    • Smooth surface improves Z-axis precision, making it ideal for parts requiring tight tolerances.
    • Textured side boosts first-layer adhesion while minimising the need for adhesive materials.
    • Regular cleaning and periodic maintenance ensure maximum performance and longevity.
    • Compatible with a variety of filaments, catering to a wide range of 3D printing applications.

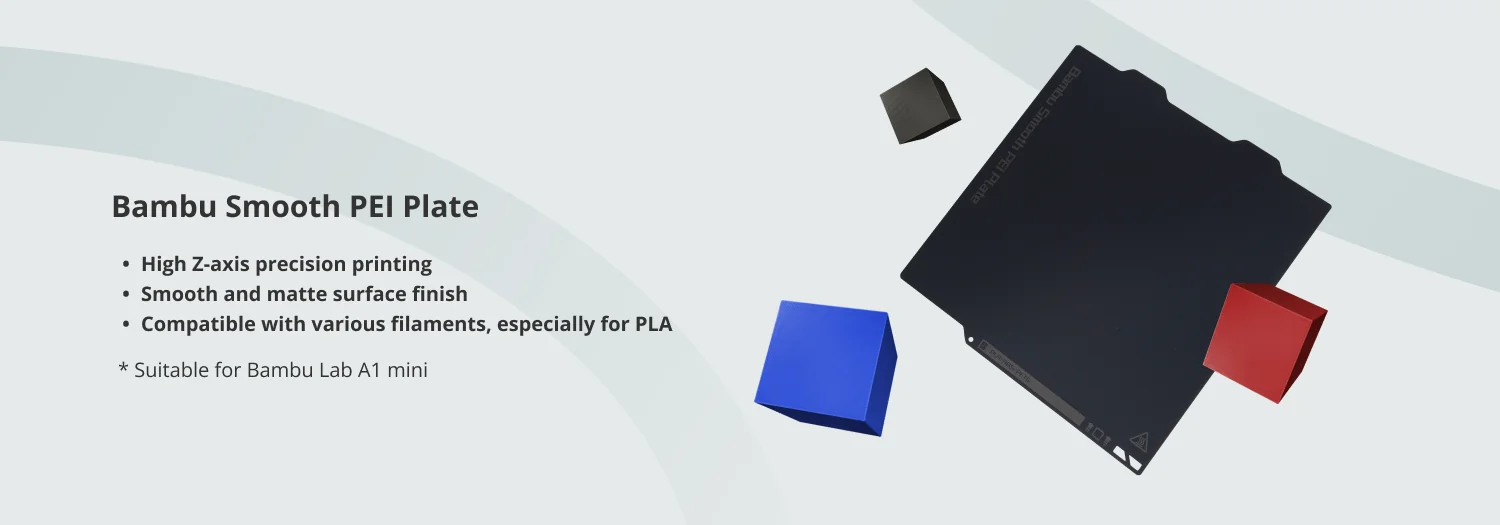

    Bambu Smooth PEI Plate, High Z-axis precision printing, Smooth and matte surface finish

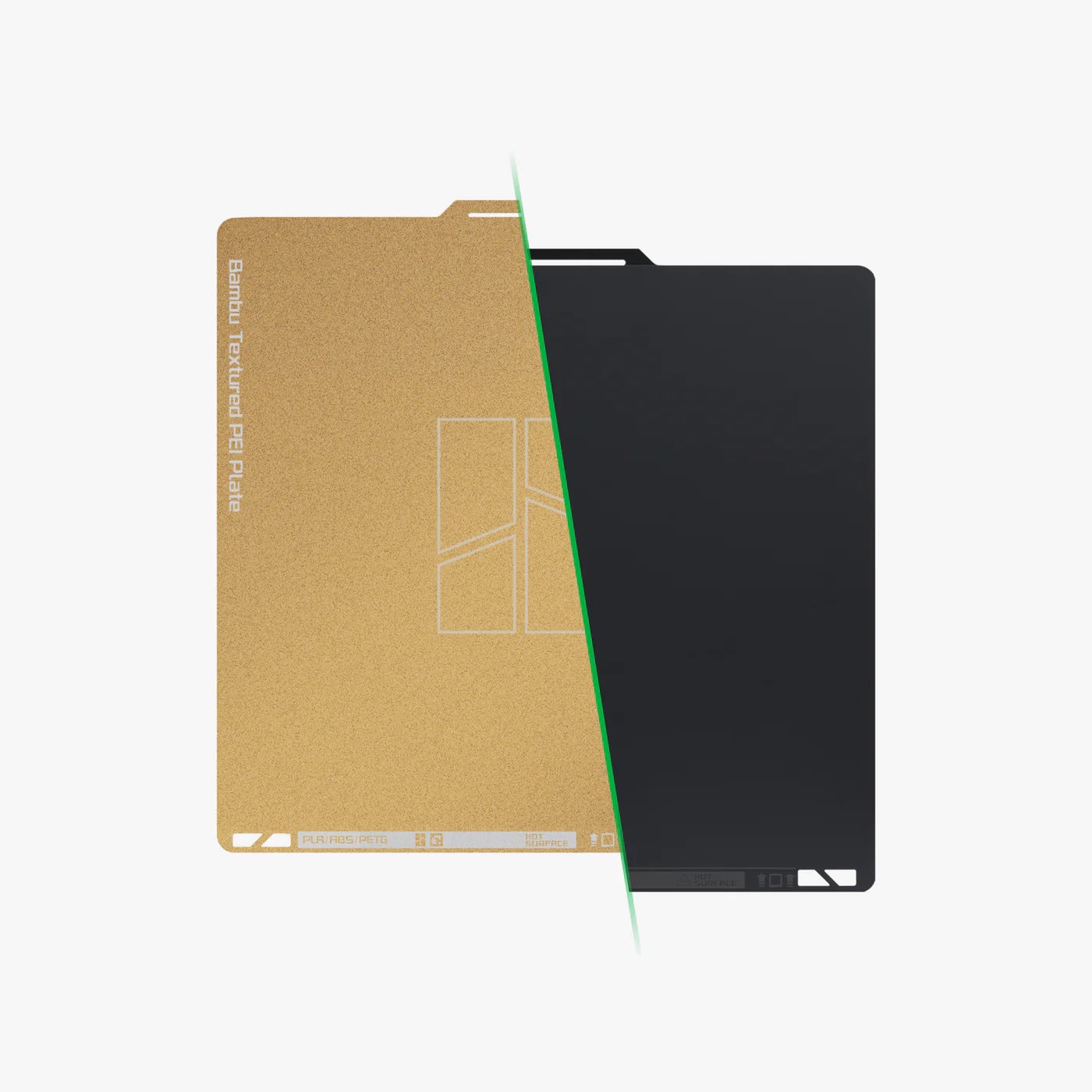

    Two Textures (Textured and Smooth) in One Plate

    Enjoy the benefits of two different textures in one plate, one side is Textured PEI surface and the other side is Smooth PEI surface. This Plate features a 0.5mm magnetic stainless steel plate that enhances magnetic adhesion and helps to prevent warping and ensure optimal print quality during 3D printing.

    Smooth PEI surface:

    High Z-axis Precision Printing

    The use of a Smooth PEI Plate contributes to improved Z-axis precision during the printing process, ensuring greater accuracy and consistency in the vertical dimension. These qualities make the Smooth PEI Plate an excellent choice for printing parts that demand a high level of fit accuracy, where precise alignment and tight tolerances are crucial.

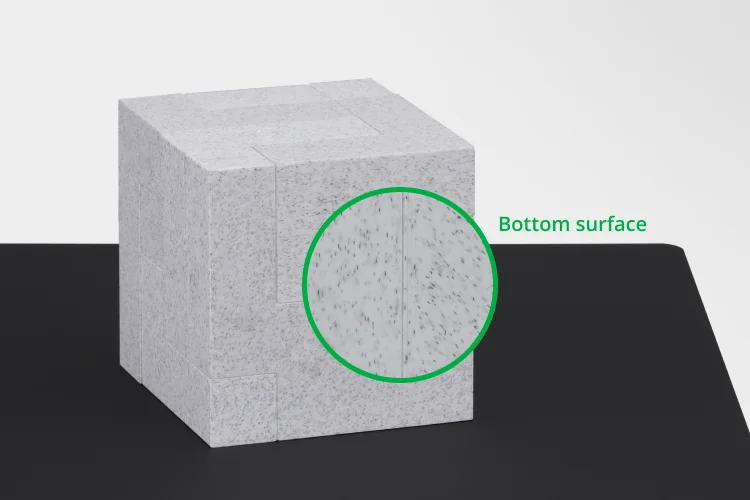

    Surface Finish

    Smooth and Matte surface finish

    The use of a specially selected matte PEI sheet can impart a smooth and matte texture to the bottom surface of the printed object, enhancing its overall appearance

    Textured PEI surface:

    Excellent First-layer Adhesion and Improved Durability

    Textured PEI surface has enhanced the durability, and improved the adhesion between the prints and the plate, eliminating the need for adhesives.

    *In some situations, glue is required for very specific filaments

    Self-release when Cooled Down


    Considerations

    • Deposition of dust and grease on the build plate decrease adhesion. It is recommended to regularly clean the surface with detergent and water to to maintain best adhesion.
    • Increasing heatbed temperature enhances adhesion. Users need to adjust the temperature of the heatbed based on their specific requirements in order to achieve the most suitable level of adhesion.
    • Carefully sanding the Textured PEI surface with fine-grit (600 was recommended) sandpaper can help restore adhesion.
    • If bubbles appear on the bottom of the Smooth PEI sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
    • Do not clean the Bambu Dual-Texture PEI Plate with Acetone, as it will damage the PEI surface.
    • Bambu Lab recommends only using Bambu Lab official glue on the Bambu Lab build plates, and can not be held responsible for any damage caused to plates as a result of using third-party glue on build plates.
    • Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
    • The Bambu Dual-Texture PEI Plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
