Recommended Settings
Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements

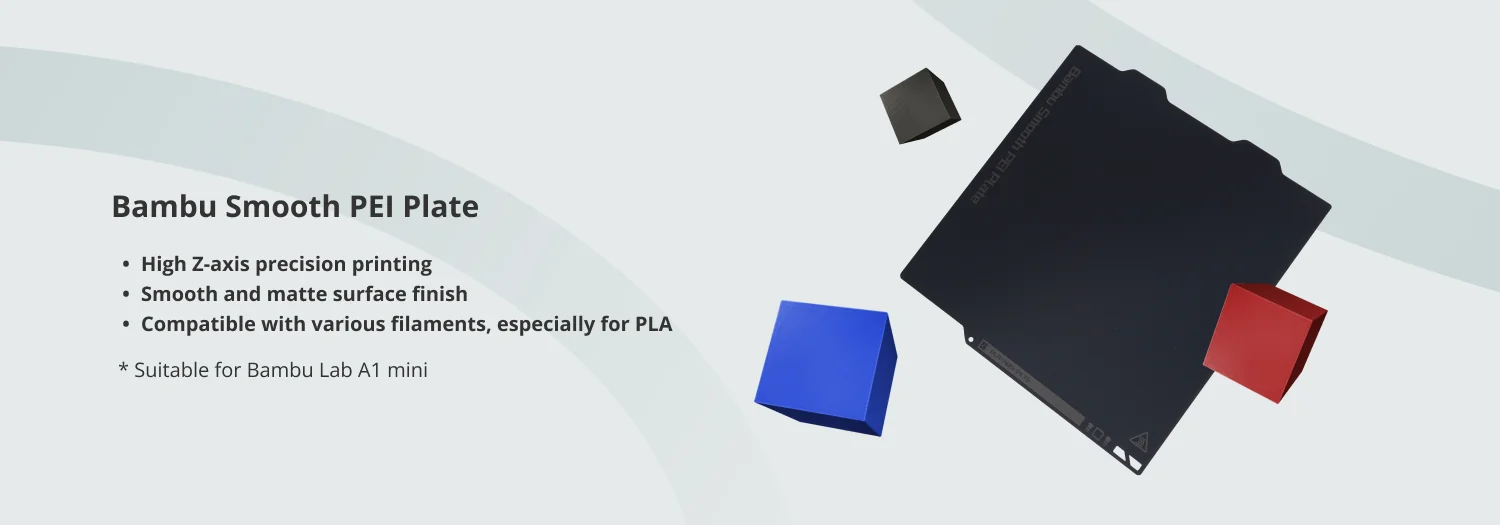

High Z-axis precision printing
The use of a Smooth PEI Plate contributes to improved Z-axis precision during the printing process, ensuring greater accuracy and consistency in the vertical dimension. These qualities make the Smooth PEI Plate an excellent choice for printing parts that demand a high level of fit accuracy, where precise alignment and tight tolerances are crucial.

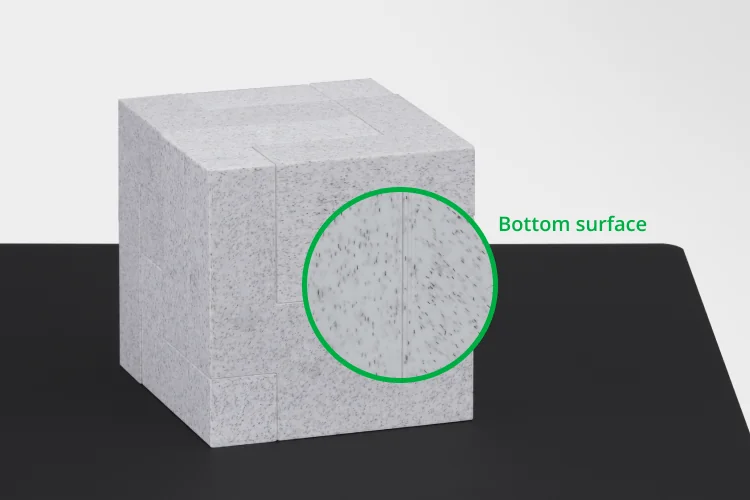

Smooth and Matte surface finish
The use of a specially selected matte PEI sheet can impart a smooth and matte texture to the bottom surface of the printed object, enhancing its overall appearance

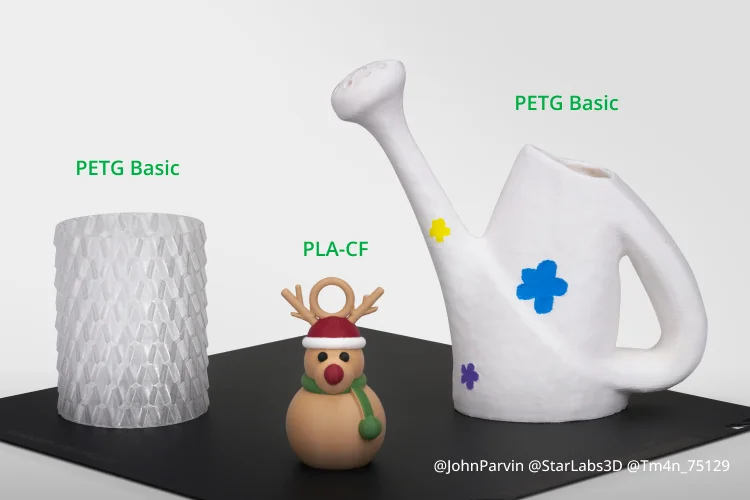

Compatibility with various filaments, especially for PLA
PEI enables printing not only with common materials such as PLA, TPU, PETG and PVA. Note: Please apply liquid glue or a glue stick to prevent the sheet from tearing if print filament other than PLA.
Installation Steps
Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you
Step 2: Lower the plate and secure to the magnetic platform
Product Specification
Considerations
If bubbles appear on the bottom of the sheet, heating it on the heatbed at a temperature of no less than 80 degrees for several hours can be helpful in eliminating the bubbles.
Regularly clean the surface with detergent and water to eliminate any dust or grease residue first. If it doesn't work, clean the surface with alcohol.
Do not clean the Smooth PEI with Acetone, as it will damage the PEI surface.
Always wait for a few minutes before removing printed models to allow the plate to cool down for easy print removal. This prevents damage to the plate and ensures a long lifetime of the product.
The Smooth PEI plate is considered a consumable part, which will degrade over time. The warranty will only cover manufacturing defects, not cosmetic damage like scratches, dents, or cracks. Defective sheets upon arrival are the only ones covered by the warranty.
