Overview
It is the plastic panel that is installed on the left side of the printer when facing the screen of the printer.
Installation
Learn more about the replacement of the Left Plastic Panel for P1 Series on Bambu Lab Wiki. Please note that the left and right side panels of the P1P may be incompatible with the base and require shaving off two tabs on the bottom of side panels for successful installation.

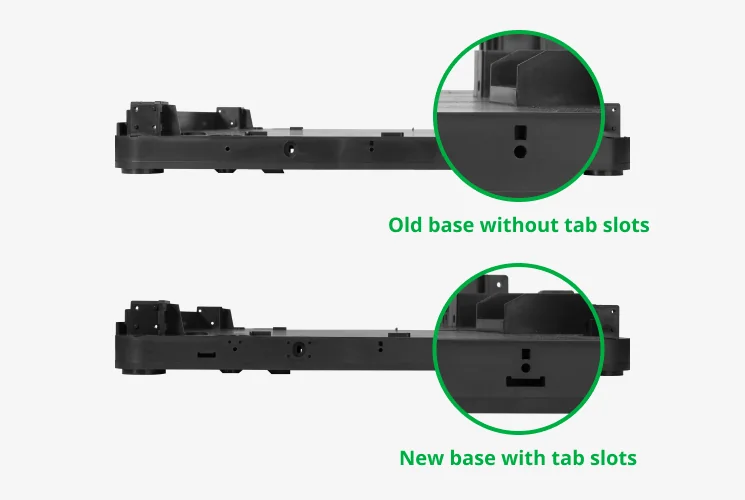

Two types of bases for the P1P model
We have two types of bases for the P1P model. One version comes with side panel tab slots, while the other version does not have these slots. It is possible that earlier shipments of the P1P model were of the older version without the tab slots, while recent and future shipments of the P1P will be of the newer version with the tab slots. Please check if your printer base has tab slots or not.
Two types of side panel
The side panels we shipped earlier also did not have tabs. Due to a change in production plans, the side panels we will be shipping in the near future and onwards will have tabs.If your printer base does not have tab slots but you received side panels with tabs, please remove the tabs from the side panels.
In the Box
- Left Plastic Panel*1
- BT3-6 screw*12
- ST3-4 screw*4
- ST2-3 screw*4
