New and Improved! The plastic parts are now injection moulded using a high strength, high stiffness glass fiber reinforced material. These new Oops clamps are awesome!
For use with waste boards with T-Tracks.
Oops Clamps are ultra low profile, high strength clamps with a replaceable "oops" tip. The Oops Clamp design offers the clamping force of metal clamps with the safety of plastic clamps. All hardware is standard off the shelf M6 or 1/4-20. Different lengths can be easily acquired at your local hardware store. You may also remove slide connector to use larger hardware.
Check out the Oops Clamps Video: https://youtu.be/lEfkyyRgwAE
Important Note: While Oops clamps are designed to use different hardware to install to individual wasteboards, please ensure to only use M6 screws for the Jackscrew. The Oops clamps have been pre-tapped and the use of other threads may affect the performance or durability of the product. Please see safety manual for proper use and installation.

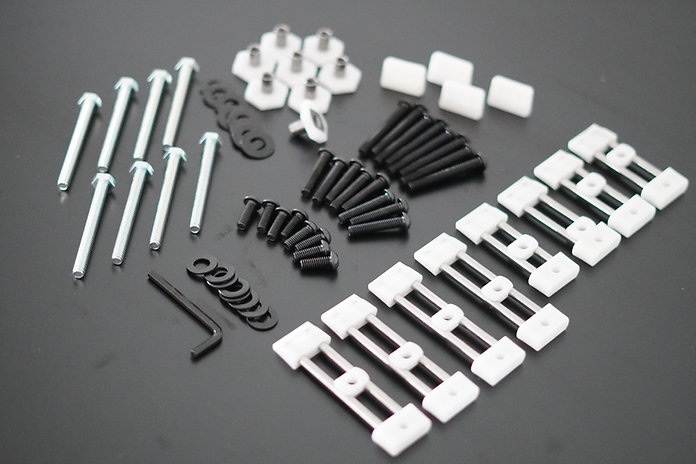

This 23 piece set comes complete with 8 Oops Clamps (4 standard length and 4 long), 4 replacement "oops" tips, M6x16mm Button screws (8 pieces), M6x30mm Button screws (8 pieces), M6x45mm Button screws (8 pieces), M6x62mm hex bolts (8 pieces), M6 Hand Nuts (8 Pieces)washers and Allen Key.
Note:
Long version has an overall length of 84mm with an adjustment range of 51mm's
Short version has an overall length of 65mm with an adjustment range of 32mm's
Please see specification sheet on the Assembly Tips and Tricks page for more info.
