Overview
A set of circuit boards installed on the printer's toolhead.
Important to know
Please refer to the Wiki page hereto check the version of your X1 Series TH board. There is no difference in functionality between the Dual Red Laser version and the Single Red Laser version.
The Single Red Laser TH board is discontinued and has been replaced by the Dual Red Laser TH board.
The Dual Red Laser TH board works with the Dual Red Laser LIDAR.
If your Single Red Laser TH board is faulty and needs to be replaced under warranty, we will provide a replacement TH board + Dual Red Laser LIDAR free of charge under warranty.
If your printer is out of warranty, you will need to purchase the TH board replacement and we will provide the Dual Red Laser LIDAR free of charge as a one time courtesy.
To do so, please open a ticket by following this link, and our team will handle your request ASAP.
Installation
Before ordering the TH board or micro lidar for X1C/X1, please determine their versions to avoid the wrong version, which results in compatibility issues.

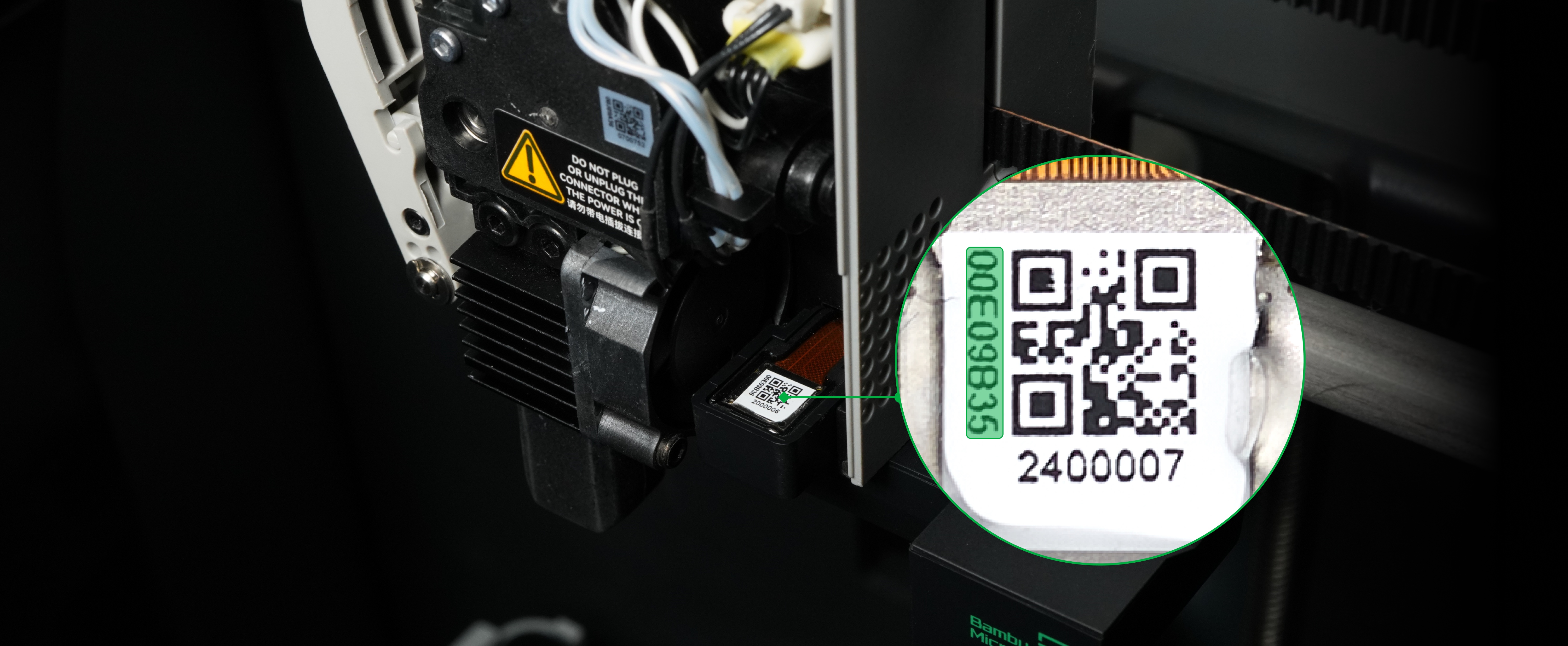

If the Micro Lidar SN starts with 00ExxB, it means that the lidar is a dual red version, and the TH board should also be a dual red version with a serial number SN starting with 003xxC, 003xxD, or 003xxY.
If the Micro Lidar SN starts with 00ExxA, it means that the lidar is a single red version, and the TH board should also be a single red version with a serial number SN starting with 003xxA or 003xxB.
Learn more about the replacement of the TH Board Set V9 (Dual Red Laser) - X1 Series on Bambu Lab Wiki.
In the Box

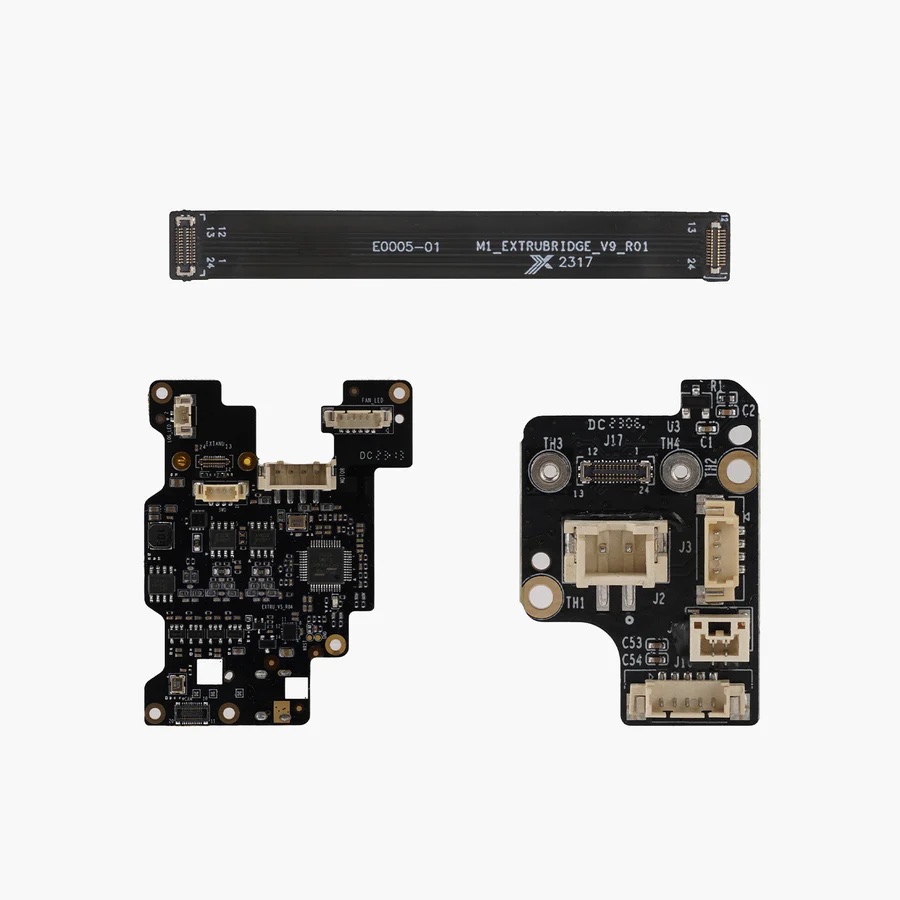

- TH Board Set V9 (Dual Red Laser)*1
- TH Board FPC Cable V9*1
- Extruder TH Board V9*1
- M1_6-4*4
- Glue*1
Compatibility
X1 and X1C (not for X1E)
