Overview

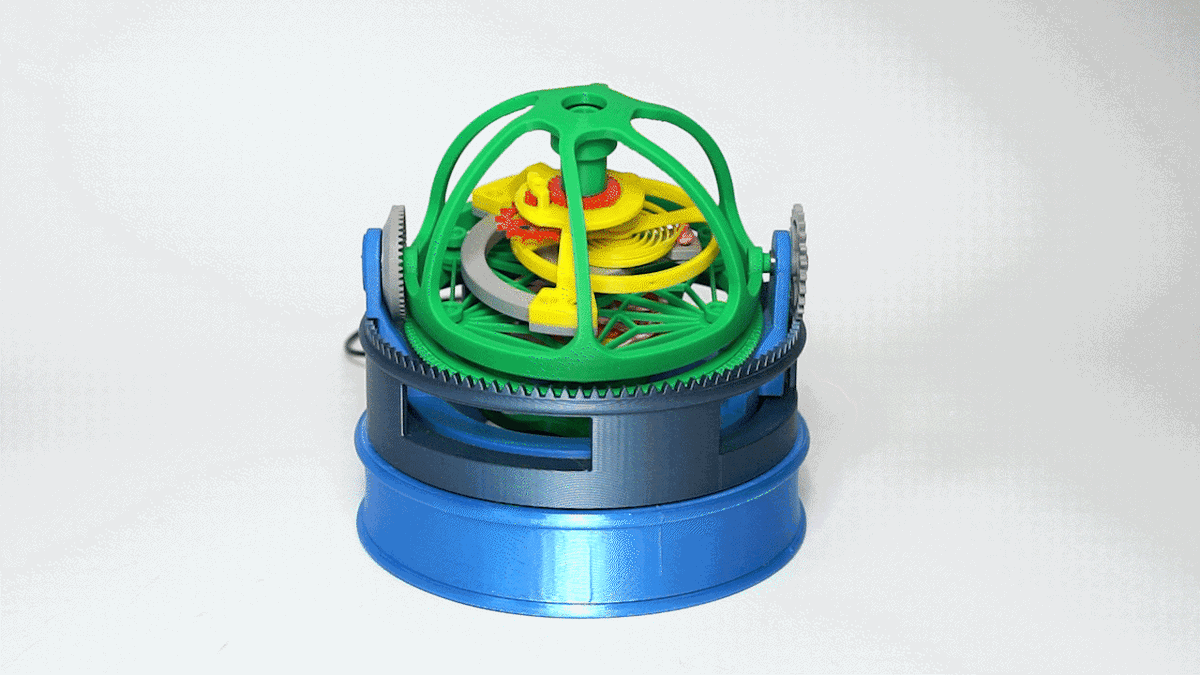

The Triple-axis Tourbillon Model Components Kit contains all the necessary hardware components for assembling a Triple-axis Tourbillon Model. To complete the assembly for an entirely functional piece, users also need to download the model files and 3D print the remaining parts.
Creator Program: The Creator Program is a collaborative program between Bambu Lab and creators. Creators unleash their creativity to design 3D printing models, while Bambu Lab provides compatible hardware kits for those designs.
To download the model files of Triple-axis Tourbillon Model and obtain detailed information, please visit the Triple-axis Tourbillon Model on MakerWorld.
Installation
In the Box
| Item | Qty |
| M2x6 FHCS (Machine Screw) | 3 PCS
|
| M2x8 FHCS (Machine Screw) | 24 PCS |
| M2x10 FHCS (Machine Screw) | 11 PCS |
| M2x12 FHCS (Machine Screw) | 2 PCS |
| M2x14 FHCS (Machine Screw) | 1 PCS |
| M2.5x6 BHCS (Machine Screw) | 8 PCS |
| M3x23 SHCS (Machine Screw) | 2 PCS |
| MR52 Steel Deep Groove Ball Bearing | 6 PCS |
| 6704 Steel Deep Groove Ball Bearing | 1 PCS |
| F8-14M Miniature Plane Thrust Ball Bearing | 1 PCS |
| MR128 Steel Deep Groove Ball Bearings | 6 PCS |
| 6mm Stainless Steel Ball | 16 PCS |
| 2*13 mm Brass Dowel Pin | 1 PCS |
| 2*22 mm Brass Dowel Pin | 1 PCS |
| 2*32 mm Brass Dowel Pin | 1 PCS |
| TT Motor (DC5V 59RPM CCW Single Axis) | 1 PCS |
Notes
1. Please power the device using a USB power supply with the specified voltage.2. Please test the operation of the mechanism by rotating the control handle before powering. After powering, verify the operational status of the motor and be cautious to prevent motor blockage.3. It is recommended to use indoors at room temperature.
Product Specifications
| Packaging Size | 100*69*35 mm
| Product Weight | 79 g |
| Voltage | DC 5V
| Gross Weight | 93 g |
