Wireless Charger Kit-K012

Overview

The Wireless Charger Kit contains all the non-3D printed parts for assembling an entirely functional A1 mini Wireless Charger or an Air Force Command Headquarters Wireless Charger. To complete the work, you need to download the model files and 3D print the parts.
To download the model files and obtained detailed information, please visit A1 mini Wireless Charger or Air Force Command Headquarters on Makerworld.

A1 mini Wireless Charger

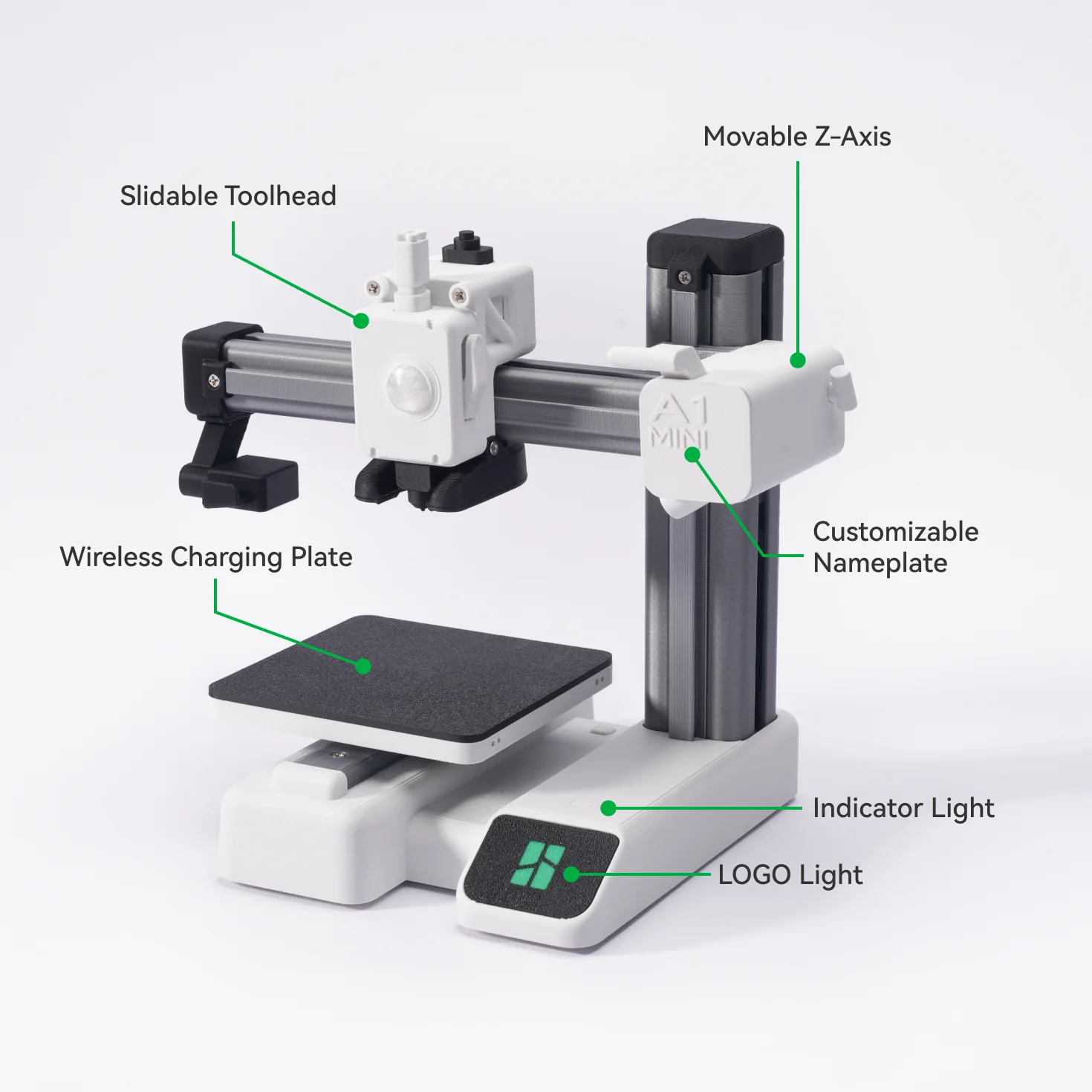

A1 mini Wireless Charger is here! We have designed an adorable wireless charger model based on the appearance of our A1 mini 3D Printer.

• Simply connect a Type-C cable to the wireless charger to power it on. Then place your phone on the wireless charging plate to start the charging process.

• Once the charging starts, the Z-axis will simulate the printing process by moving up and down for one cycle. During this time, the LOGO light and indicator light will light up.

• You can use the Make My Sign function on Makerworld to customize your own nameplate for your A1 mini wireless charger. To learn more about the nameplate customization, please visit A1 mini Wireless Charger on Makerworld.

• To accommodate different phones and filaments, we have specially designed two power modes (high/low) to avoid phone overheating and heat deflection of printed parts.

• We have also engineered two different drive modes (mode 1 and mode 2) for the A1 mini wireless charger to adapt to varying levels of friction generated during the Z-axis movement. (This friction is caused by differences in filament materials and printing tolerances)

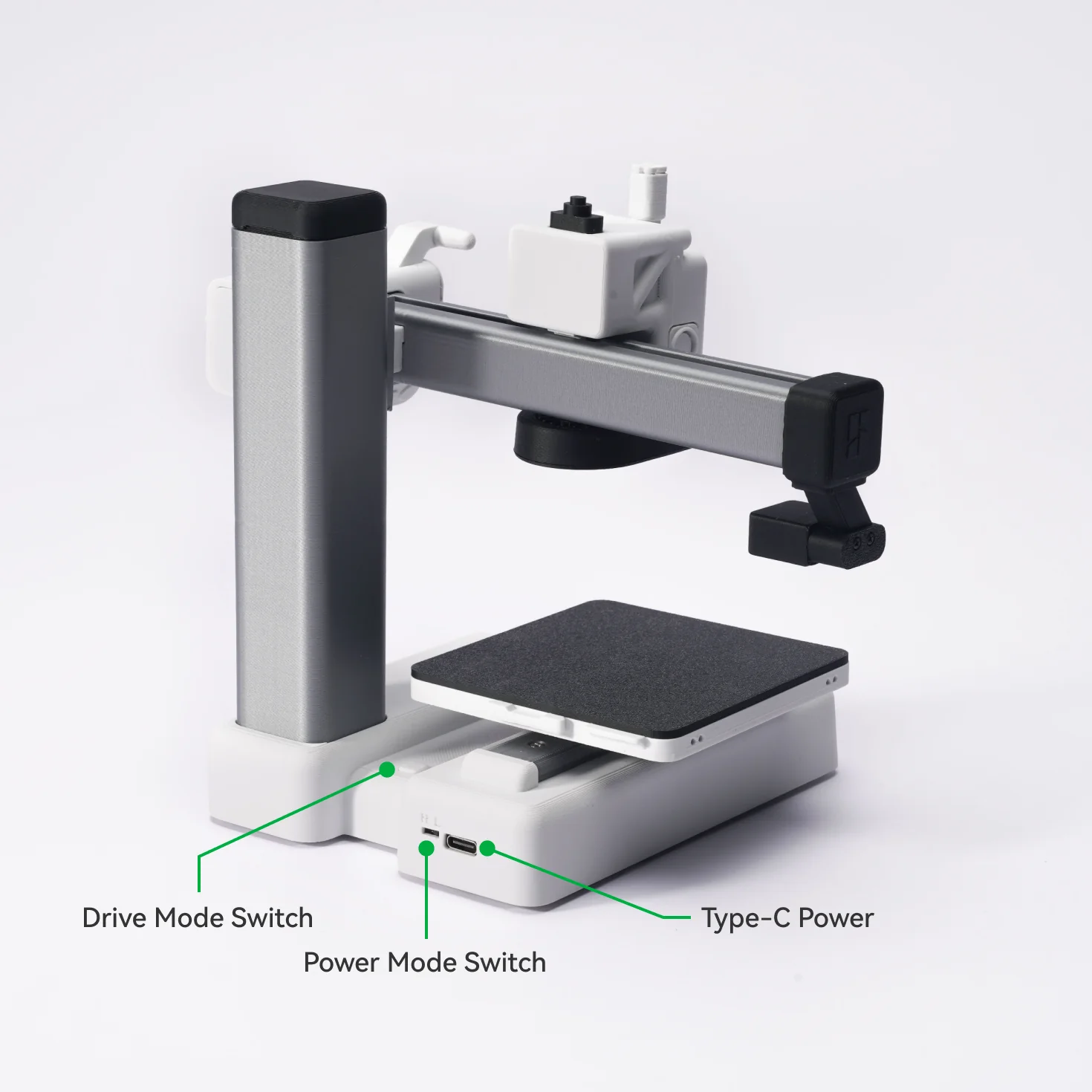

Drive Mode Specifications

• The A1 mini Wireless Charger is only compatible with Mode 1, 2, 7. Please do not keep it in Mode 3, 4, 5, 6 for an extended period. This precaution is necessary to prevent any potential damage to the model.

• All drive modes are arranged in a fixed cyclic order (1 to 7). Each press of the drive mode switch will switch the wireless charger to the next mode in sequence.

Mode 1 (default mode)

Lights: Highlight for 10s and then stay lit at normal brightness

Motor: Back-and-forth motion for one cycle

Compatible Model: A1 mini Wireless Charger

Mode 2

Lights: Highlight for 10s and then stay lit at normal brightness

Motor: Back-and-forth motion for one cycle with greater power (adapt to varying levels of friction generated during the Z-axis movement)

Compatible Model: A1 mini Wireless Charger

Mode 3

Lights: Continuous breathing light

Motor: Continuous back-and-forth motion

Compatible Model: Air Force Command Headquarters

Mode 4

Lights: Continuous breathing light

Motor: Continuous one-way motion

Compatible Model: Air Force Command Headquarters

Mode 5

Lights: Breathing light for 10s

Motor: Back-and-forth motion for 10s

Compatible Model: Air Force Command Headquarters

Mode 6

Lights: Breathing light for 10s

Motor: One-way motion for 10s

Compatible Model: Air Force Command Headquarters

Mode 7

Lights: OFF

Motor: OFF

Compatible Model: A1 mini Wireless Charger, Air Force Command Headquarters

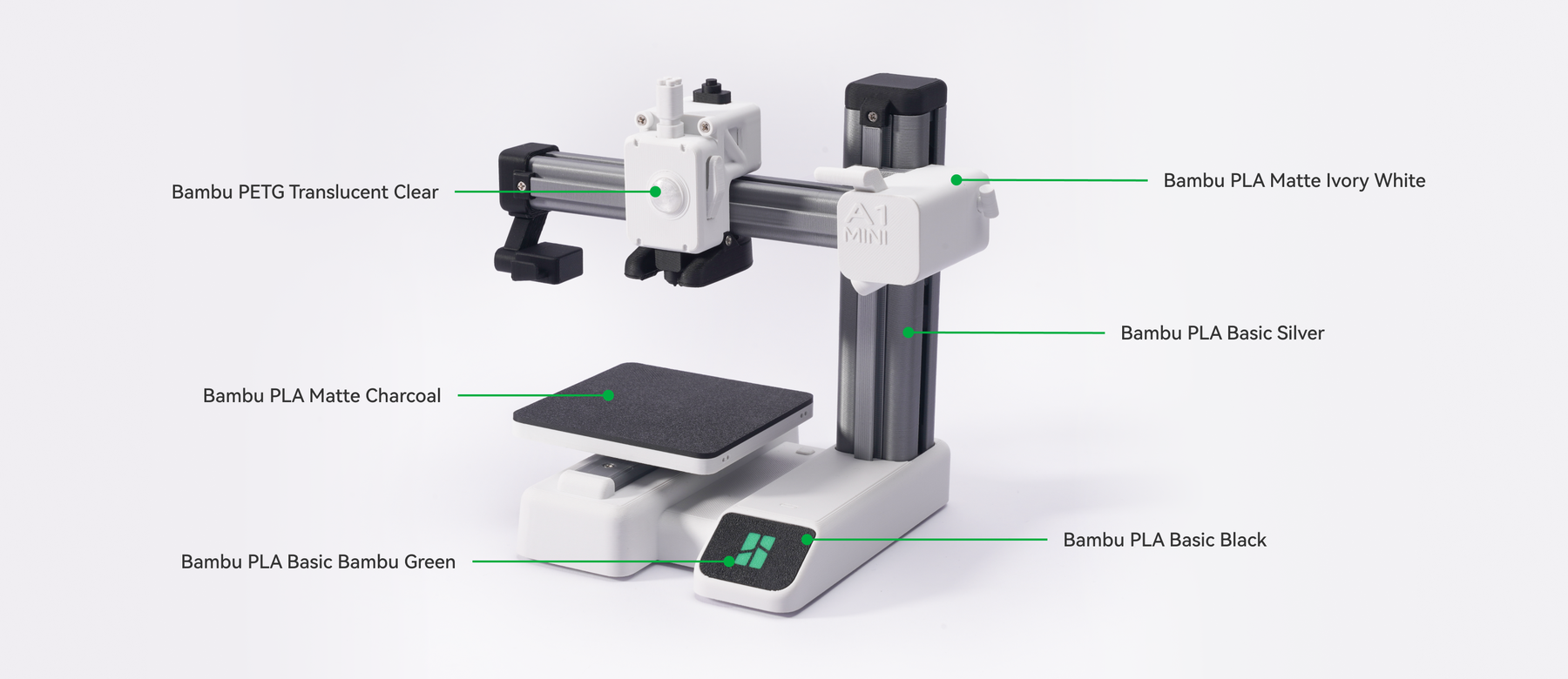

Recommended Filaments

Purchasing together with the wireless charger kit will give you discounts on all the recommended filaments. You can add them to cart from the "Buy add-ons to save more" section.

Installation

Recommended tools for installation: PH Screwdriver, Transparent Adhesive, Wire Cutter, Needle Nose Side-Cutter, Tweezer, Glue.

In the Box

Product Specifications
