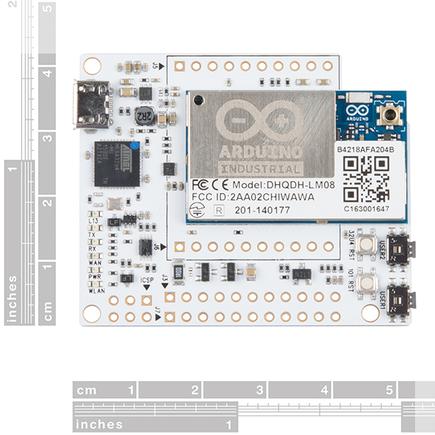

The Arduino Industrial 101 is a WiFi evaluation board for the Arduino 101 LGA module based on a MIPS Linux processor. With the Industrial 101 you will possess a fantastic addition to the Arduino family and be able to easily create IoT projects without the need for multiple shields. Similar to the Arduino Yun (in a small form-factor), the Industrial 101 integrates an ATmega32U4 and the Atheros AR9331 SoC to make a dependable evaluation resource!
The onboard ATmega32u4 microcontroller has been integrated into the baseboard of the Industrial 101, while the LGA module supports a Linux distribution based on OpenWRT named LininoOS. The board has built-in WiFi (IEEE 802.11b/g/n operations up to 150Mbps 1x1 2.4GHz), three GPIOs (of which two can be used as PWM outputs), four analog inputs, one USB, one Ethernet signal on pin headers and a built-in DC/DC converter.
Features:
- Arduino Microprocessor
- Processor: Atheros AR9331
- MIPS Architecture
- Operating Voltage: 3.3V
- Flash Memory: 16MB
- RAM: 64MB DDR2
- Clock Speed: 400MHz
- WiFi: 802.11 b/g/n 2.4GHz
- Ethernet: 802.3 10/100 Mbit/s (exported on headers)
- USB 2.0 Host (exported on headers)
- Arduino Microcontroller
- Microcontroller: ATmega32u4
- AVR Architecture
- Operating Voltage: 5V
- SRAM 2.5 KB
- Clock Speed: 16MHz
- Analog I/O Pins: 12 (4 exported on header)
- EEPROM: 1KB
- DC Current per I/O Pins: 40mA
- General
- Input Voltage: 5V
- Digital I/O Pins: 20 (7 exported on header)
- PWM Output: 7 (2 exported on header)
- Power Consumption: 130mA
- GPIO (3 exported on headers)
- DogOLED Support (1 exported on headers)
