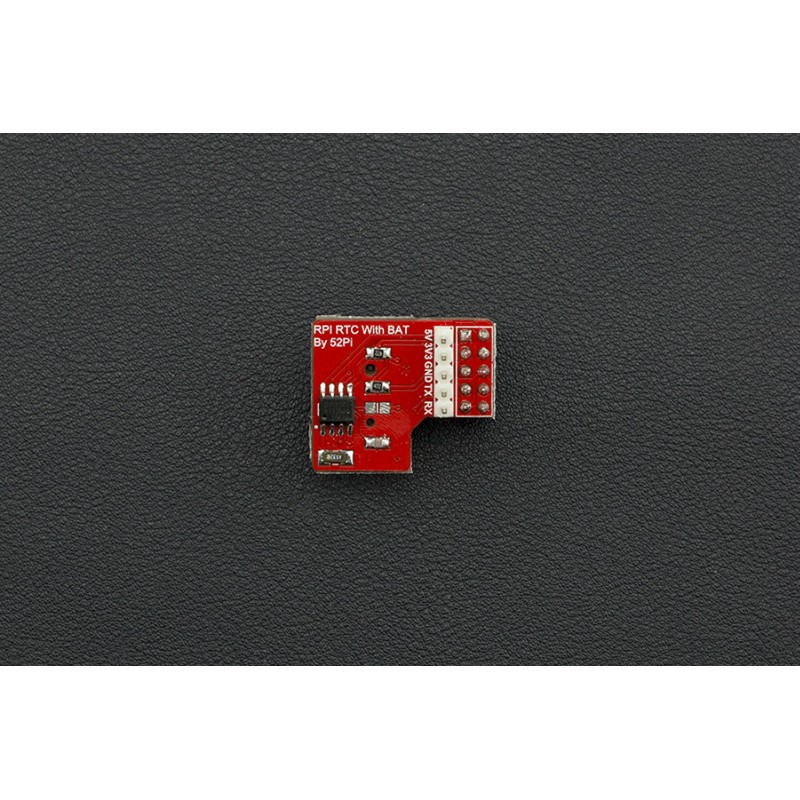

This RTC module is specifically designed for the Raspberry Pi. It communicates with Raspberry Pi through I2C bus and includes a Maxim DS1307 and CR1220 button cell on the board to keep a real time clock for a long time after the Pi has powered down. Just set a serial port, and you have a convenient way of online debugging using TTL. Supports Raspberry Pi B/A+/B+/2 model B/3 model B.
|Specification|
- RTC module: DS1307
- Battery model: CR1220 button cell
- Operting Voltage: 5V
- I2C address: 0x68
- Clock precision: &;plusmn;2ppm (0~40&;deg;C)
- Unit information: Second, Minute, Date, Week, Month and Year
- Operating temperature: -10&;deg;C?+85&;deg;C
- Compatible with Raspberry Pi B/A+/B+/2 model B/3 model B
- Interface: 2*5p 2.54mm
|Documents|
|ShippingList|
- RTC module with Battery for Raspberry Pi x1
- DS1307 Button cell x1
