Hotend with Stainless Steel - 0.4 mm Nozzle, A1 Series

Item #: BAM-FAH007
Bin:WH4
There are no reviews yet Write a review
Price: $25.30 inc GST
    The product is in stock Availability: Stocked
    Usually ships In 2-4 days.

    Quantity:

    Quick Swap Nozzle Design

    The special design of hotend heating assembly enables easy separation of the thermal and electronic components of the hotend. In addition, the magnetic block installed on the hotend heatsink enables quick and accurate fixation of the hotend to its precise mounting position. This feature enhances the convenience of quick swapping, allowing for easy removal and installation of the hotend.

    *Please ensure that the hotend has cooled down before swapping, and avoid touching the heat block (lower section of the hotend) to prevent any risk of burns.

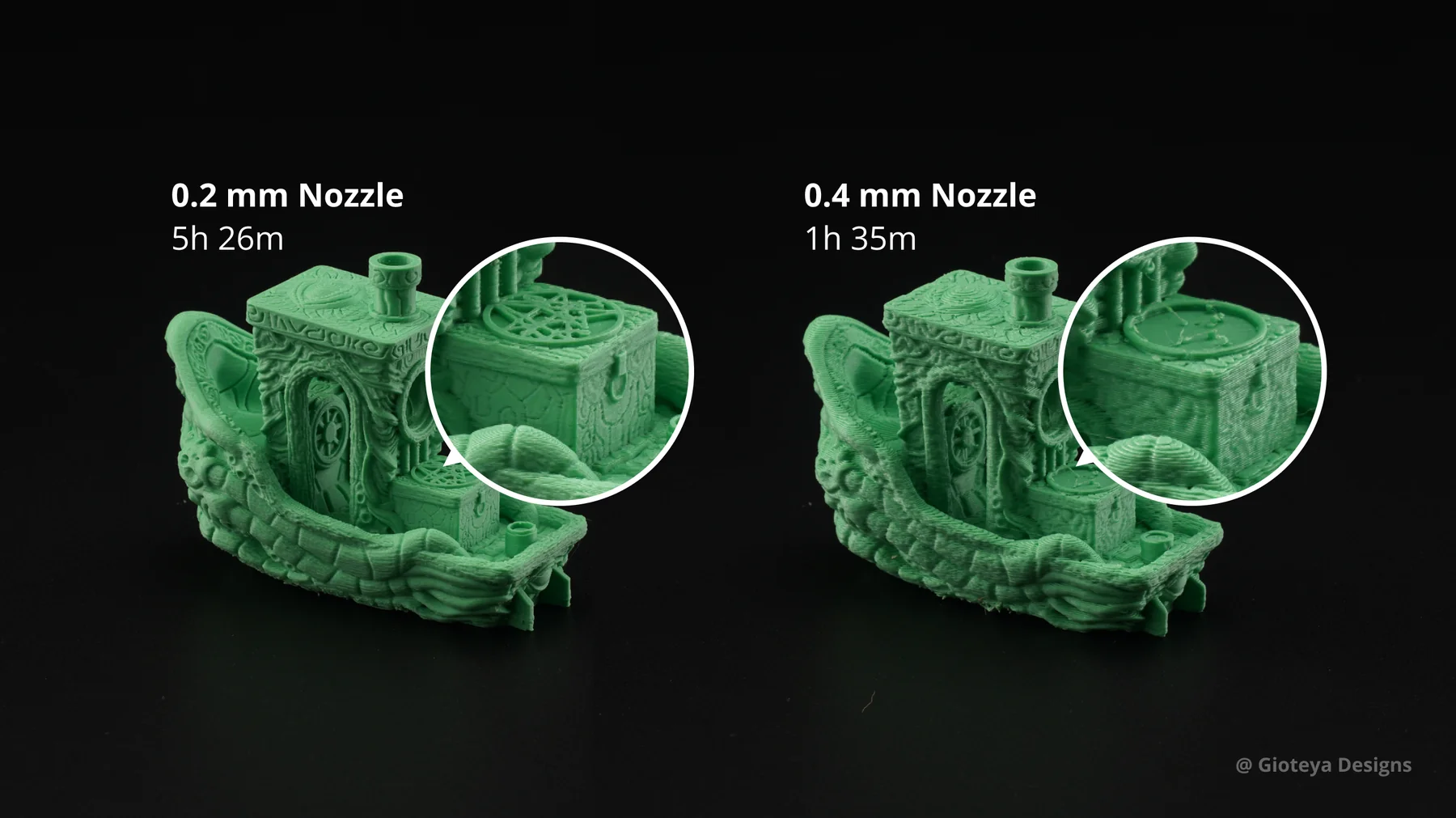

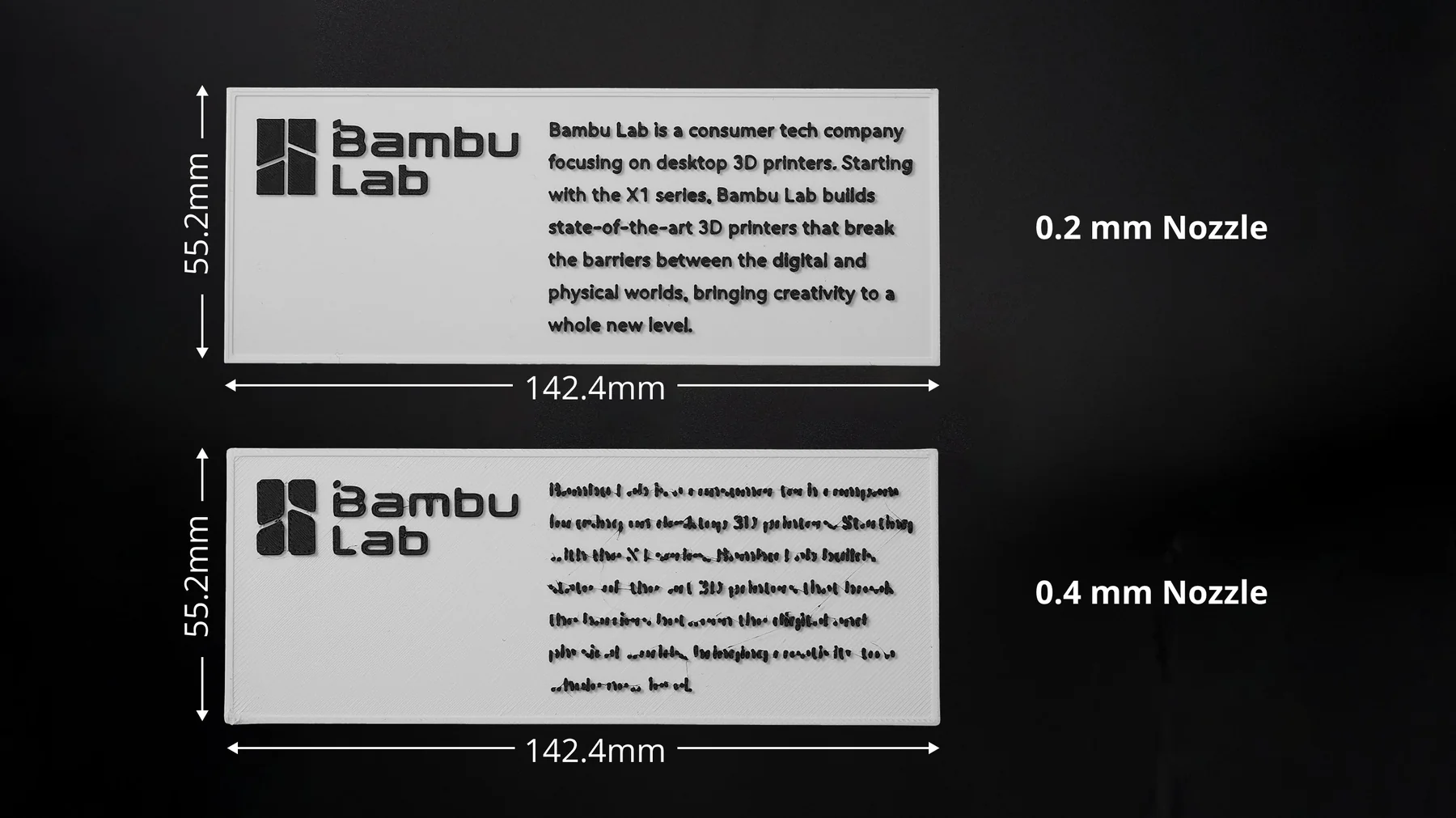

    Highlights of Various Nozzle Diameters

    0.2mm Nozzle
    Optimal Print Fineness

    Extremely small layer gaps
    More detailed on the vertical print surface

    图片加载失败文案

    0.2mm Nozzle
    Optimal Print Fineness

    Smaller diameter extrudes thin filaments
    High resolution on the horizontal print surface

    图片加载失败文案

    0.6mm and 0.8mm Nozzle
    Faster Print Speed

    Larger diameter extrudes more filaments per second, resulting in faster print speed


    Installation: Learn more about replacing the Hotend with Nozzle on Bambu Lab Wiki.


    Material

    0.2 mm Nozzle

    0.4 mm Nozzle

    0.6 mm Nozzle

    0.8 mm Nozzle

    Hardened Steel Required?

    General PLA

    YES

    YES

    YES

    YES

    Optional

    PLA Sparkle

    *NO

    YES

    YES

    YES

    Optional

    PLA Marble

    *NO

    YES

    YES

    YES

    Optional

    Wood/Rock/Metal-filled PLA

    *NO

    YES

    YES

    YES

    Optional

    PETG

    YES

    YES

    YES

    YES

    Optional

    PVA

    YES

    YES

    YES

    YES

    Optional

    ABS

    YES

    YES

    YES

    YES

    Optional

    ASA

    YES

    YES

    YES

    YES

    Optional

    PC

    YES

    YES

    YES

    YES

    Optional

    PA

    *NO

    YES

    YES

    YES

    Optional

    TPU

    *NO

    YES

    YES

    YES

    Optional

    Bambu PLA-CF

    *NO

    *Highly

    Recommended

    YES

    YES

    *Required

    Bambu PETG-CF

    *NO

    *Highly

    Recommended

    YES

    YES

    *Required

    [*Note]

    1. Filaments with carbon fiber, glass fiber, metal, or other inorganic particles are prone to clog a 0.2 mm nozzle.
    2. For filaments containing carbon fiber or glass fiber, it is highly recommended to use a hardened steel 0.6 mm nozzle to minimize the risk of clogging and abrasion.
    3. Bambu PLA-CF and Bambu PETG-CF have been extensively tested and proven to have a low risk of clogging when printed with a hardened steel 0.4 mm nozzle, while also achieving higher print quality.

    Learn more about filament compatibility on Bambu Lab Wiki.

    Hotend with 0.4 mm Nozzle x 1

    60 x 60 x 30 mm
