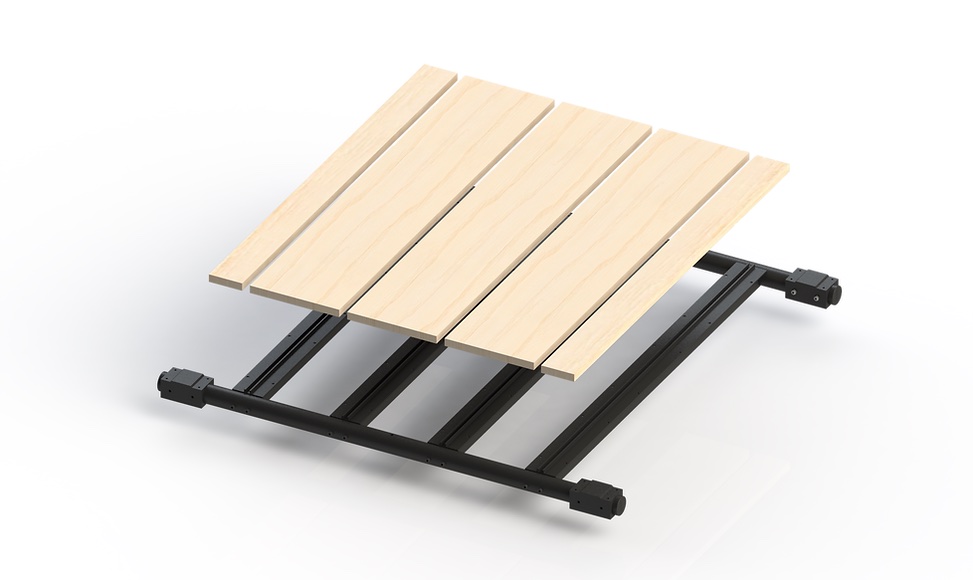

The QCW Frame provides a solid base for your Onfinity. Engineered to be ridgid without sagging. With precision machined Mounting Blocks, No-Sag Interlocking Extrusions, Integrated T-Track and fast and easy wasteboard replacement. The QCW Frame is a great addition to your Onefinity CNC! The "Secure from Beneath" Version offers simple, easy and fast wasteboard replacement. No custom machining required!
Important Note: T-Track works with 1/4-20 Hex Head Bolts. Clamps that use a different size Bolt may not work with the T-Track. 1/4-20 Hex Head Bolts can be found here: https://www.mcmaster.com/92865A544/
QCW Frame (Fasten from Beneath) features:
Precision machined mounting blocks for quick and easy set-up.
Interlocking extrusions to prevent twisting and maximizes stiffness.
Integrated T-Track for easy clamping.
Engineered to be rigid: No sagging.
Secure from Beneath Version offers simple, easy and fast wasteboard replacement. No custom machining required
QCW Manual can be found here: QWC Manual
For more info please check out the QCW Frame promo video: https://youtu.be/uG9UhdVFnv0
Note: MDF is not included.
Installation Videos:
QCW Frame: https://youtu.be/muNO4zxq36U
Creating Wasteboard: https://youtu.be/ZdnZXLD8yyw
Attaching your Onefinity CNC: https://youtu.be/9wQefGPz5Vo
