"X-50 Woodworker" – The X-50 Woodworker comes with an upgraded X-Axis, featuring large 50mm Hollow Linear Motion Shafts for great rigidity (Stiffy is unnecessary), a Larger Stepper Motor with up to 40% more torque, and a 1616 Ball Screw that delivers 60% more speed.
Built with the woodworker in mind. This kit is designed to be large enough for making signs, furniture, growth charts, nameplates, and more! Don’t let the name fool you - it’s still perfectly capable of doing plastics, foam, brass, aluminum, and more!
Router not included! The Onefinity was designed to work with The MAKITA 6.35mm (1/4") Router RT0702C and must be purchased separately!
Product info:
X-rail is composed of 50mm Hollow Linear Motion Shafts and the Y-rails are composed of two 35mm Hollow Linear Motion Shafts. We use sealed linear bearings for smooth, maintenance-free motion. All axis ball screws come standard. Assembly time should be less than one hour because most parts come preassembled!
Our advanced controller (optional) is a fully enclosed, smart CNC controller with built-in CAM software allowing for operation without a computer! Built on the tested and proven Buildbotics open source, this allows us to drive our motors at higher rates for a smoother operation. With built-in features including 4 motor channels at up to 6A, micro-stepping up to 256, step rates up to 250k/sec per channel, and smooth S-curve acceleration on the fly which gives you clean cuts and prolonged tool life. We think this is the best controller yet.
We understand that you want to protect your investment for the long term. This is why we NEVER require the Onefinity to be connected to the internet. It is 100% able to work offline. However, we think one of the best features of our controller (optional) is the ability to connect it to a network (via built-in ethernet or wifi). While this feature is 100% optional, it opens up some really cool abilities. First, your controller can receive firmware updates and bug fixes to enhance the Onefinity’s abilities. Secondly, once connected to your network, your Onefinity can connect to any device with a web browser on the same network. By doing this, you can control your Onefinity via a phone, tablet, or computer. We’ve even had it connected to a game console! With the optional USB camera you can keep an eye on your Onefinity CNC from anywhere!

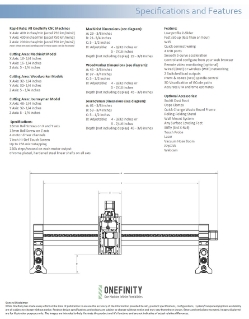

Woodworker Cutting Area: 32 1/8"(X) x 32 1/8"(Y) x 5 1/4"(Z)
Designed in Canada
Manufactured in Canada
Tested in Canada (each unit is fully tested before shipping)
What’s included in the kit:
3 Preassembled X and dual Y rails
1 Preassembled Z Slider
1 Electronics Controller
1 High-definition touchscreen display with spring-loaded mount
4 Quick connect wire harnesses
PLUS (also included)
1 Onefinity Suckit Dust Boot Basic
1 Onefinity 3-Axis XYZ Touch Probe
1 Onefinity Wireless joystick Kit
1 Display 8" Hi-Def Touch Display
Not included:
Router not included! The Onefinity was designed to work with The MAKITA 6.35mm (1/4") Router RT0702C and must be purchased separately!
Bits and Cutters. You will need to supply your own bits and cutter.
Waste Board. We recommend 3/4'" MDF. The size will depend on the machine you purchased and your setup.
Shipping:
Once your order is received, we'll review the shipping to your specific address and update your invoice. As these items go by freight not courier the costs need to be finalised after we receive a quote from our cartage company as it is impacted by things like rural addresses and home vs commercial delivery. Final shipping is likely to be close to what our system works out by default however.
