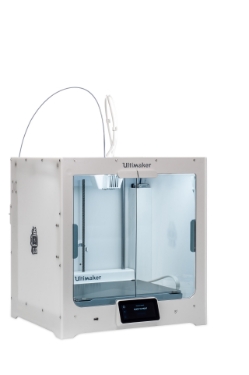

Our most advanced 3D printer yet - the Ultimaker S5. Built for the office, the Ultimaker S5 is a powerful, reliable, and versatile 3D printer that delivers industrial-class results.
Forward-thinking professionals all over the world, from designers to engineers to architects, discovered that the Ultimaker 3 is a powerful, low-cost solution that significantly streamlines production processes and concept development. Building on the capabilities of the Ultimaker 3, the Ultimaker S5 adds enhanced performance with a larger build volume, effortless operation, and unparalleled reliability.
Powerful, reliable, versatile 3D printing - quick overview of specifications:
Build volume:
330 x 240 x 300 mm |
Layer resolution:
Down to 20 micron |
Technical plastics |
Function with form

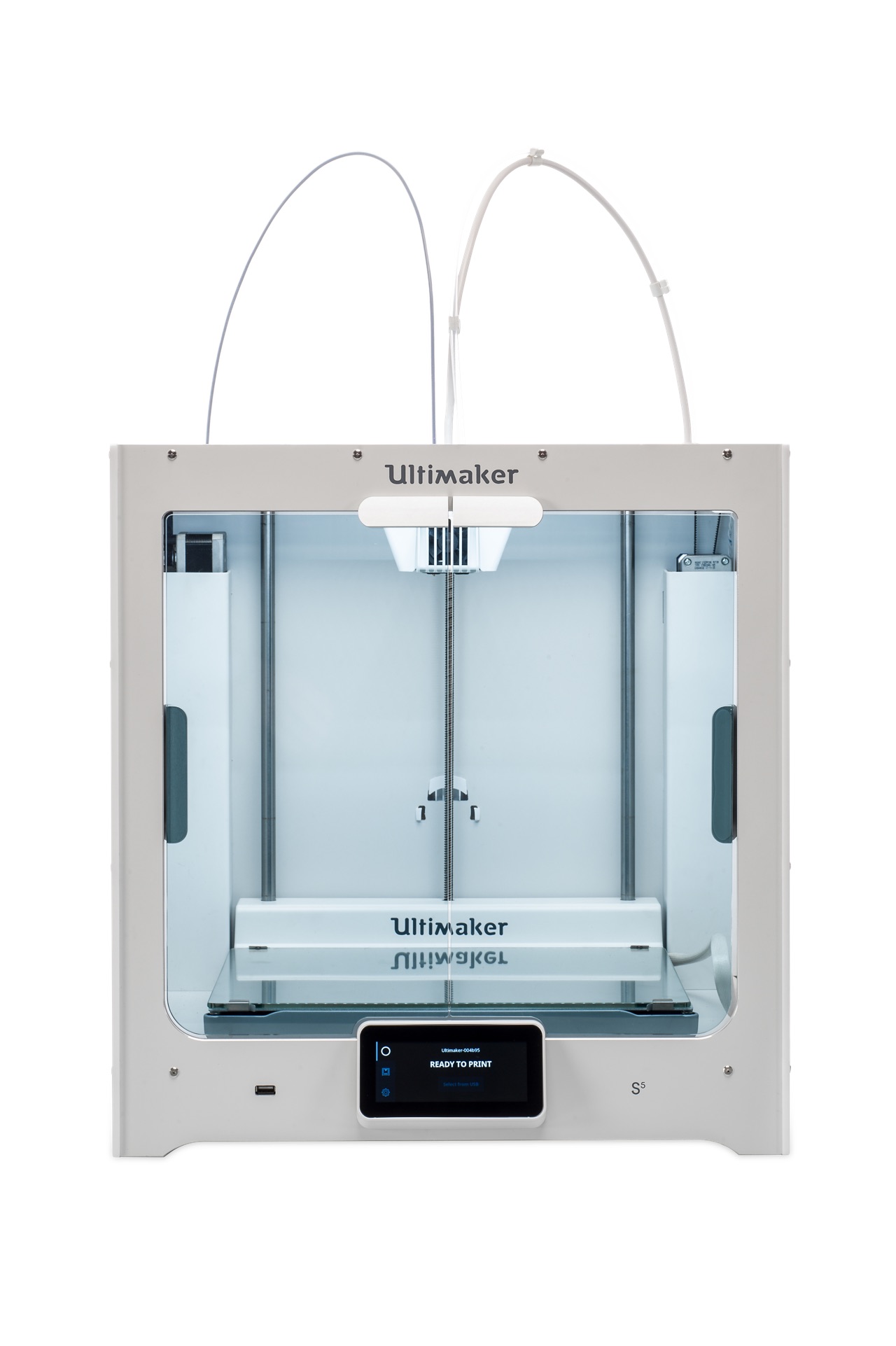

The Ultimaker S5 packs powerful technology in a simple, clean, stylish enclosure that fits right in with your office. An enclosed front, with tinted glass doors, ensures that the internal temperature and airflow is optimal. An intuitive touchscreen interface guides you through operation of the printer, and displays detailed status information. Frame lights provide visual feedback, and project clean white light to overview and inspect your print up close. And an embedded power supply gives the printer a clean footprint, making it ideal for shelf or rack mounting.
Reliability at scale
The Ultimaker S5 has a large build volume of 330 x 240 x 300 mm. Print at large scale, or fit multiple parts on a build plate, so you can get the dimensions you designed for. And in combination with Cura Connect, group multiple Ultimaker S5 and Ultimaker 3 printers together to maximize production efficiency.
Reliable adhesion, from first layer to finished part
A perfect first layer is crucial to every 3D print. To ensure that this happens every time, we have overhauled our active leveling technology. The Ultimaker S5 probes the build plate in a greater number of locations, creating a precisely detailed heightmap of the build surface. Using this data, it compensates for any surface deviations in real time, giving you a perfect, ultra-flat first layer, with secure adhesion that lasts the entire print. There’s no need for constant monitoring - just start a print and leave the Ultimaker S5 to do its job, while you do yours.
Printed on the Ultimaker S5
Think big, print bigger
With its bigger build volume, the Ultimaker S5 is designed for a reliable 3D printing experience at scale. For large, technical prints, Tough PLA material offers toughness similar to ABS with the simplicity of PLA.
Optimized materials
Ultimaker materials are extensively tested to give the best results on the Ultimaker S5. And Ultimaker Cura software comes with preconfigured profiles, so you don’t need to spend time on complex slicing settings.
Limitless possibilities
3D print everything from quick prototypes to complex, technical parts with Ultimaker’s range of build and support materials. And with an open filament system, you can also choose a custom material solution.
Features
Enhanced reliability
Active bed leveling ensures a perfect first layer, a closed front controls
airflow, and a filament flow sensor will pause your print and notify you if
you run out of material. Trust the S5 to do its job while you do yours.
Bigger build volume
A build volume of 330 x 240 x 300 mm (13 x 9.4 x 11.8 inches), combined
with Ultimaker’s reliable dual extrusion and water-soluble support, gives
even more freedom to realize your designs or print multiple parts in one
go so you can meet demand with maximum efficiency, while fitting
comfortably on your desk.
Fast setup, high uptime
With Ultimaker’s unique print core design, swap nozzles in seconds to
switch between build and support materials, or choose from 0.8, 0.4, or
0.25 mm print cores for fast or detailed prints.
Easy touch control
A 4.7-inch (11.9 cm) touch display makes operating the 3D printer
effortless, displaying visual guides to explain configuration changes and
maintenance, plus a visual preview of your print.
Designed to connect
The Ultimaker S5 auto-detects material and print core configuration, while
over-the-air firmware upgrades make adding the latest features simple.
Print over Wi-Fi, Ethernet, or from a USB stick, and monitor progress via
the built-in camera.
High uptime and greater flexibility
Swappable print cores enables effortless, tool-free maintenance and maximum printer uptime. Achieve different print characteristics using different nozzle sizes, ranging from 0.8 mm for rapid prints, to 0.25 mm for ultra-fine detail. With two available print core slots in the print head, quickly and easily click in your desired combination for reliable dual-extrusion. Print with different colors for aesthetic impact, or use water-soluble PVA or Breakaway support for full geometric freedom, easy post-processing, and a high-quality surface finish, so that tactile presentation models, or complex mechanical parts look polished and professional.
To get accurate, consistent results with a range of materials, the Ultimaker S5 uses two interchangeable build plates: hardened glass for general use, and ultra-flat anodized aluminum (available fall 2018 ) for advanced engineering materials, such as ABS, CPE+, and PC. Each build plate quickly and easily clips onto an extra-stiff cast aluminum heated platform, keeping your print securely in place for the entire print duration.
Full control at your fingertips
A responsive, full-color touchscreen, integrated into the front panel of the Ultimaker S5, makes operation intuitive, effortless, and informed. Swipe through menus and tap options to select them, just like a smartphone. Detailed information, such as loaded materials, print cores, and the build plate and nozzle temperature keeps you up to date about jobs in progress, and a 3D preview lets you see what’s printing at a glance. And with eleven supported display languages, including English, German, Simplified Chinese, Japanese, and Korean, the Ultimaker S5 is accessible to users all over the world.
Never used a 3D printer before? No problem. The touchscreen intuitively guides you through setup and maintenance operations, using simple, easy-to-understand language, complete with high-resolution images, so that everything is crystal-clear, regardless of your technical abilities.
Get ahead with professional prototyping
A Bowden extrusion system keeps the print head ultra-light, for the fastest possible performance. A tight filament path ensures a reliable experience printing with flexible materials, such as TPU 95A.
Material is moved at a precise rate with a tool steel feeder gear, with an extra-hard coating to prevent long-term wear. And the redesigned silicone nozzle cover keeps print head airflow consistent, for efficient material throughput.
Loading, unloading and changing material is effortless, with an ergonomic locking lever built into each feeder. Flip the lever upwards to manually insert or remove material. Flip it closed, and constant force is applied to the material, so it is driven accurately.
A built-in filament flow sensor intelligently detects when material stops moving or is nearing an end. To save your print if a spool runs out, the Ultimaker S5 will automatically pause and prompt you to take action.
